High-speed vertical form-fill-seal packaging machine for 3 or 4-side pouch
.
FEATURES:
1. Interactive 5.7" LCD touch panel display allows for easy and friendly operation.
2. Film draw down system is controlled by servo motor.
3. Simple , functional , low maintenance construction
4. Film draw down system is controlled by servo motor.
SPECIFICATIONS:
| Applications |
Coffee,Milk Powders,Grains,Etc. |
| Capacity
|
Max 400 bags/min |
| Bag
size |
Width 40~100mm
Length 45~150mm |
| Film
material |
Laminated films, Aluminium films, Paper films,Etc |
| Power
source |
3 PH, AC380V , 6.0KW |
| Air
consumption |
No air-diring parts |
| Machine
size |
W 800 x L 1960 x H1700mm |
| Machine
weight |
Approx 400kg |
|

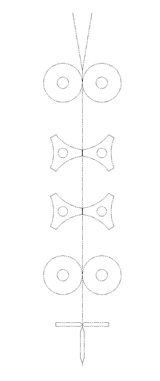

PVH-1000High-speed working principle |
